Adding 2-Axis Servo Control to UV4L WebRTC

追加機能

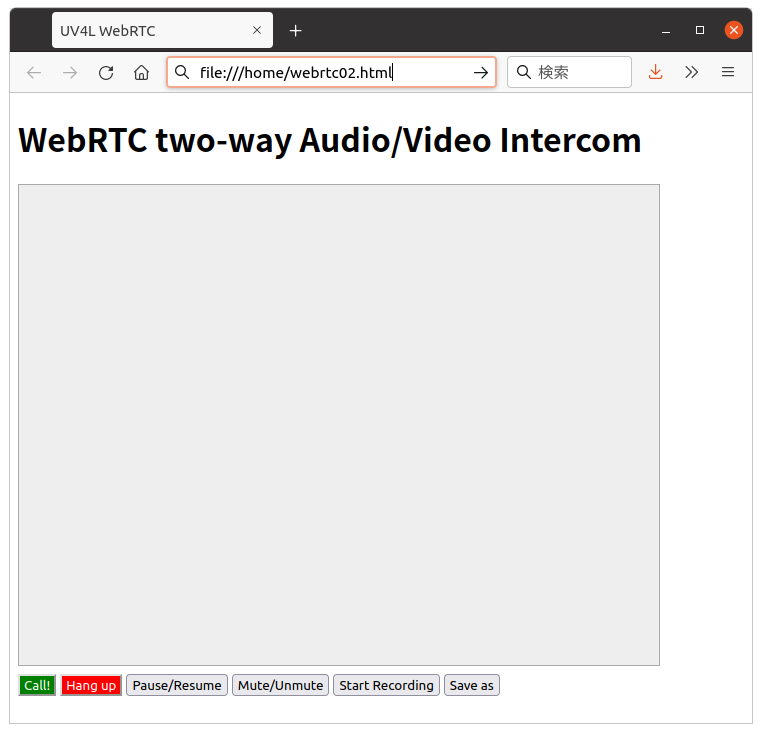

前回の ”webrtc01.html"にPause/Resume、 Mute/Unmute、 Start Recording 、 Save as　機能を追加しました。

オリジナルソースコードにこれらの関数が有り、今回はボタンとそれらを対応させただけです。

ボタン	関数
Pause/Resume	pause()
Mute/Unmute	mute()
Start Recording	start_stop_record()
Save as	download()

以下が修正後のコード　”webrtc02.html”　です

webrtc02.html html

<!DOCTYPE html>
<html>
    <head>
        <meta charset="UTF-8">
        <title>UV4L WebRTC</title>
        <script type="text/javascript">

            var ws = null;
            var pc;
            var audio_video_stream;
            var mediaConstraints = {
                optional: [],
                mandatory: {
                    OfferToReceiveAudio: true,
                    OfferToReceiveVideo: true
                }
            };
            var iceCandidates = [];
            var recorder = null;

            function createPeerConnection() {
                try {
                    pc = new RTCPeerConnection();
                    pc.onicecandidate = onIceCandidate;
                    pc.ontrack = onTrack;
                    pc.onremovestream = onRemoteStreamRemoved;
                    console.log("peer connection successfully created!");
               } catch (e) {
                    console.error("createPeerConnection() failed");
                }
            }

            function onIceCandidate(event) {
                if (event.candidate && event.candidate.candidate) {
                    var candidate = {
                        sdpMLineIndex: event.candidate.sdpMLineIndex,
                        sdpMid: event.candidate.sdpMid,
                        candidate: event.candidate.candidate
                    };
                    var request = {
                        what: "addIceCandidate",
                        data: JSON.stringify(candidate)
                    };
                    ws.send(JSON.stringify(request));
                } else {
                    console.log("End of candidates.");
                }
            }

            function addIceCandidates() {
                iceCandidates.forEach(function (candidate) {
                    pc.addIceCandidate(candidate,
                        function () {
                            console.log("IceCandidate added: " + JSON.stringify(candidate));
                        },
                        function (error) {
                            console.error("addIceCandidate error: " + error);
                        }
                    );
                });
                iceCandidates = [];
            }

            function onTrack(event) {
                console.log("Remote track!");
                var remoteVideoElement = document.getElementById('remote-video');
                remoteVideoElement.srcObject = event.streams[0];
            }

            function onRemoteStreamRemoved(event) {
                var remoteVideoElement = document.getElementById('remote-video');
                remoteVideoElement.srcObject = null;
                remoteVideoElement.src = ''; // TODO: remove
            }

           function start() {
                if ("WebSocket" in window) {
                    document.getElementById("stop").disabled = false;
                    document.getElementById("start").disabled = true;
                    document.documentElement.style.cursor = 'wait';

                    var protocol = location.protocol === "https:" ? "wss:" : "ws:";
                    ws = new WebSocket(protocol + '//raspberrypi.local:8090/stream/webrtc');

                    ws.onopen = async function () {
                        iceCandidates = [];
                        remoteDesc = false;
                        audio_video_stream = await navigator.mediaDevices.getUserMedia({video: false, audio: true});
                        createPeerConnection();
                        audio_video_stream.getTracks().forEach(track => pc.addTrack(track, audio_video_stream));
                        var request = {
                            what: "call",
                            options: {
                                force_hw_vcodec: false,
                                vformat: "30",
                                trickle_ice: true
                            }
                        };
                        ws.send(JSON.stringify(request));
                        console.log("call(), request=" + JSON.stringify(request));
                    };

                    ws.onmessage = function (evt) {
                        var msg = JSON.parse(evt.data);
                        if (msg.what !== 'undefined') {
                            var what = msg.what;
                            var data = msg.data;
                        }
                        console.log("message =" + what);

                        switch (what) {
                            case "offer":
                                pc.setRemoteDescription(new RTCSessionDescription(JSON.parse(data)),
                                        function onRemoteSdpSuccess() {
                                            remoteDesc = true;
                                            addIceCandidates();
                                            console.log('onRemoteSdpSucces()');
                                            pc.createAnswer(function (sessionDescription) {
                                                pc.setLocalDescription(sessionDescription);
                                                var request = {
                                                    what: "answer",
                                                    data: JSON.stringify(sessionDescription)
                                                };
                                                ws.send(JSON.stringify(request));
                                                console.log(request);

                                            }, function (error) {
                                                alert("Failed to createAnswer: " + error);

                                            }, mediaConstraints);
                                        },
                                        function onRemoteSdpError(event) {
                                            alert('Failed to set remote description (unsupported codec on this browser?): ' + event);
                                            stop();
                                        }
                                );
                                break;

                            case "iceCandidate": // when trickle is enabled
                                if (!msg.data) {
                                    console.log("Ice Gathering Complete");
                                    break;
                                }
                                var elt = JSON.parse(msg.data);
                                let candidate = new RTCIceCandidate({sdpMLineIndex: elt.sdpMLineIndex, candidate: elt.candidate});
                                iceCandidates.push(candidate);
                                if (remoteDesc)
                                    addIceCandidates();
                                document.documentElement.style.cursor = 'default';
                                break;
                        }
                    };

                    ws.onclose = function (evt) {
                        if (pc) {
                            pc.close();
                            pc = null;
                        }
                        document.getElementById("stop").disabled = true;
                        document.getElementById("start").disabled = false;
                        document.documentElement.style.cursor = 'default';
                    };

                    ws.onerror = function (evt) {
                        alert("An error has occurred!");
                        ws.close();
                    };

                } else {
                    alert("Sorry, this browser does not support WebSockets.");
                }
            }

            function stop() {
                if (audio_video_stream) {
                    try {
                        if (audio_video_stream.getVideoTracks().length)
                            audio_video_stream.getVideoTracks()[0].stop();
                        if (audio_video_stream.getAudioTracks().length)
                            audio_video_stream.getAudioTracks()[0].stop();
                        audio_video_stream.stop(); // deprecated
                    } catch (e) {
                        for (var i = 0; i < audio_video_stream.getTracks().length; i++)
                            audio_video_stream.getTracks()[i].stop();
                    }
                    audio_video_stream = null;
                }
                document.getElementById('remote-video').srcObject = null;
                document.getElementById('remote-video').src = ''; // TODO; remove
                if (pc) {
                    pc.close();
                    pc = null;
                }
                if (ws) {
                    ws.close();
                    ws = null;
                }
                document.getElementById("stop").disabled = true;
                document.getElementById("start").disabled = false;
                document.documentElement.style.cursor = 'default';
            }

            function mute() {
                var remoteVideo = document.getElementById("remote-video");
                remoteVideo.muted = !remoteVideo.muted;
            }

            function pause() {
                var remoteVideo = document.getElementById("remote-video");
                if (remoteVideo.paused)
                    remoteVideo.play();
                else
                    remoteVideo.pause();
            }

            function handleDataAvailable(event) {
                //console.log(event);
                if (event.data && event.data.size > 0) {
                    recordedBlobs.push(event.data);
                }
            }

            function stop_record() {
                if (recorder) {
                    recorder.stop();
                    console.log("recording stopped");
                    document.getElementById('record').innerHTML = 'Start Recording'
                    recorder = null;
                }
            }

            function startRecording(stream) {
                recordedBlobs = [];
                var options = {mimeType: 'video/webm;codecs=vp9'};
                if (!MediaRecorder.isTypeSupported(options.mimeType)) {
                    console.log(options.mimeType + ' is not Supported');
                    //options = {mimeType: 'video/webm;codecs=vp8'};
                    options = {mimeType: 'video/webm;codecs=vp8,opus'};
                    if (!MediaRecorder.isTypeSupported(options.mimeType)) {
                        console.log(options.mimeType + ' is not Supported');
                        options = {mimeType: 'video/webm;codecs=h264'};
                        if (!MediaRecorder.isTypeSupported(options.mimeType)) {
                            console.log(options.mimeType + ' is not Supported');
                            options = {mimeType: 'video/webm'};
                            if (!MediaRecorder.isTypeSupported(options.mimeType)) {
                                console.log(options.mimeType + ' is not Supported');
                                options = {mimeType: ''};
                            }
                        }
                    }
                }
                try {
                    recorder = new MediaRecorder(stream, options);
                } catch (e) {
                    console.error('Exception while creating MediaRecorder: ' + e);
                    alert('Exception while creating MediaRecorder: ' + e + '. mimeType: ' + options.mimeType);
                    return;
                }
                console.log('Created MediaRecorder', recorder, 'with options', options);
                recorder.ondataavailable = handleDataAvailable;
                recorder.onwarning = function (e) {
                    console.log('Warning: ' + e);
                };
                recorder.start();
                console.log('MediaRecorder started', recorder);
            }

            function start_stop_record() {
                if (pc && !recorder) {
                    var streams = pc.getRemoteStreams();
                    if (streams.length) {
                        console.log("starting recording");
                        startRecording(streams[0]);
                        document.getElementById('record').innerHTML = 'Stop Recording';
                    }
                } else {
                    stop_record();
                }
            }

            function download() {
                if (recordedBlobs !== undefined) {
                    var blob = new Blob(recordedBlobs, {type: 'video/webm'});
                    var url = window.URL.createObjectURL(blob);
                    var a = document.createElement('a');
                    a.style.display = 'none';
                    a.href = url;
                    a.download = 'video.webm';
                    document.body.appendChild(a);
                    a.click();
                    setTimeout(function () {
                        document.body.removeChild(a);
                        window.URL.revokeObjectURL(url);
                    }, 100);
                }
            }

        </script>
        <style>
            video {
                background: #eee none repeat scroll 0 0;
                border: 1px solid #aaa;
            }
        </style>
    </head>
    <body>
        <h1><span>WebRTC two-way Audio/Video Intercom</span></h1>
        <video id="remote-video" autoplay="" width="640" height="480">
            Your browser does not support the video tag.
        </video><br>
        <button id="start" style="background-color: green; color: white" onclick="start();">Call!</button>
        <button disabled id="stop" style="background-color: red; color: white" onclick="stop();">Hang up</button>
        <button type=button id="pause" onclick="pause();" title="pause or resume local player">Pause/Resume</button>
        <button type=button id="mute" onclick="mute();" title="mute or unmute remote audio source">Mute/Unmute</button>
        <button type=button id="record" onclick="start_stop_record();" title="start or stop recording audio/video">Start Recording</button>
        <button type=button id="download" onclick="download();" title="save recorded audio/video">Save as</button>
    </body>
</html>



203から206行：　function mute() {
- Mute/Unmuteボタンが押されるとこの関数を実行。
- remoteVideo.muted ：　muteを管理する変数。 !remoteVideo.muted;　muteを管理。
208から214行：　function pause() {
- Pause/Resumeボタンが押されとこの関数を実行。
- if (remoteVideo.paused)で状態を判断し、
  - remoteVideo.play();（再生）。
  - remoteVideo.pause();（停止）
268行：　function start_stop_record() {
- Start Recordingボタンが押されとこの関数を実行。
- このボタンは録画の開始と終了を兼ねています。
- 録画開始時：　ボタン表示を’Stop Recording’。startRecording()を実行。
- 録画終了時：　ボタン表示を’Start Recording’。 stop_record() を実行。
281から296行：　function download() {
- Save asボタンが押されるとこの関数を実行。
- 録画したデータのダウンロードを行う。
313行：　Pause/Resumeボタンの追加
314行：　Mute/Unmuteボタンの追加
315行：　Start Recordingボタンの追加
316行：　Save asボタンの追加

新しいHPの製作

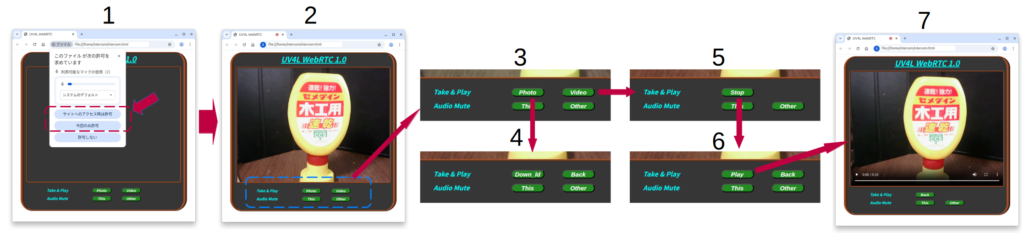

ここまでの機能を使ってインターフォン用のHPを作製して見ました。

アプリが起動直後の画面
- 立ち上げ時マイクの使用許可聞かれます。
- ”サイトへのアクセス時は許可”または”今回のみ許可”を選択。
Streaming画面が表示されます。
- これが基本画面です。
- 画面に下に操作メニューが有ります。
基本画面の操作メニュー
- Take&Play
  - Photoボタン　 Snapshotとそのダウンロード
  - Videoボタン　 Stremingの録画と再生、ダウンロード
- Audio Mute
  - This：　自分にマイクにオンオフ
  - Other：相手のマイクのオンオフ
  - Muteがオンになるとボタンが赤になります。
Photoボタン　メニュー
- ”３”で”Photo”ボタンを押すとこのメニューが表示されます。
- 画面には押した時点のSnapshotが表示されます。
- ”Down_ld”ボタンを押すとSnapshotがダウンロードされます。
Videoボタン　メニュー１
- ”３”で”Video”ボタンを押すとSteamingの録画が開始し、この画面が表示されます。
- ”Stop”ボタンが押されると録画が停止します。
Videoボタン　メニュー２
- ”５”で”Stop”ボタンを押すとこの画面が表示されます。
- ここで、”Play”ボタンを押すと録画再生用のアプリが立ち上がります。
録画再生用のアプリ
- 録画した内容をここで確認出来ます。
”４”，”５”，”６”，”７”にある”Back”ボタンを押せば”２”の基本画面に戻ります。

コードは、intercom.html、intercom.js、intercom.cssの３つに分けました。

intercom.html html

<!DOCTYPE html>
<html>
    <head>
        <meta charset="UTF-8">
        <link rel='stylesheet' type='text/css' href='./intercom.css' >
        <title>UV4L WebRTC</title>
    </head>

    <body>
        <div class='b_frame'>
   	        <div class='t_font'><u>UV4L WebRTC 1.0</u></div>

            <div class='p_frame'>
                <video id="remote-video" autoplay="" width="640" height="480"> </video>
                <video id="play-video" controls style='display:none'>Your browser does not support the video tag.</video>
            </div>

            <div class="_menu">
               <div class="input-group">
                    <label>Take & Play</label>
                    <button type='button' id='photo' onclick="take_photo();">Photo</button>
                    <button type='button' id='record' onclick="rec_video();">Video</button>
                    <button type='button' id='stp_rec' style="display:none" onclick="stop_rec();">Stop</button>
                    <button type='button' id='pt_dn' style="display:none" onclick="dn_photo();">Down_ld</button>
                    <button type='button' id='play_v' style="display:none" onclick="play_video();">Play</button>
                    <button type='button' id='back' style="display:none" onclick="_back();">Back</button>
                    <br>
                    <label>Audio Mute</label>
                    <button type='button' id='mute_me' onclick='mute_me();'>This</button>
                    <button type='button' id='mute_other' onclick='mute_other();'>Other</button><br>
                    <canvas style='display:none'></canvas>
                </div>
            </div>
        </div>

        <script src='./intercom.js'></script>
    </body>
</html>



intercom.js javascript

let ws = null;
let pc;
let audio_video_stream;
let recorder = null;
let aa_streams = [];
let mediaConstraints = {
    optional: [{echoCancellation: true}],
    mandatory: {
        OfferToReceiveAudio: true,
        OfferToReceiveVideo: true
    }
};
let iceCandidates = [];
let remoteVideo = document.getElementById("remote-video");
let recordedBlobs = [];
let disp_buf = ['photo', 'record', 'stp_rec', 'pt_dn', 'play_v', 'back'];

start();

function createPeerConnection() {
    try {
        pc = new RTCPeerConnection();
        pc.onicecandidate = onIceCandidate;
        pc.ontrack = onTrack;
        pc.onremovestream = onRemoteStreamRemoved;
        console.log("peer connection successfully created!");
    }
    catch (e) {
        console.error("createPeerConnection() failed");
    }
}

function onIceCandidate(event) {
    if (event.candidate && event.candidate.candidate) {
        var candidate = {
            sdpMLineIndex: event.candidate.sdpMLineIndex,
            sdpMid: event.candidate.sdpMid,
            candidate: event.candidate.candidate
        };
        var request = {
            what: "addIceCandidate",
            data: JSON.stringify(candidate)
        };
        ws.send(JSON.stringify(request));
    }
    else {
        console.log("End of candidates.");
    }
}

function addIceCandidates() {
    iceCandidates.forEach(function (candidate) {
        pc.addIceCandidate(candidate,
            function () {
                console.log("IceCandidate added: " + JSON.stringify(candidate));
            },
            function (error) {
                console.error("addIceCandidate error: " + error);
            }
        );
    });
    iceCandidates = [];
}

function onTrack(event) {
    console.log("Remote track!");
    var remoteVideoElement = document.getElementById('remote-video');
    remoteVideoElement.srcObject = event.streams[0];
    aa_streams[0] = event.streams[0];
}

function onRemoteStreamRemoved(event) {
    var remoteVideoElement = document.getElementById('remote-video');
    remoteVideoElement.srcObject = null;
    remoteVideoElement.src = ''; // TODO: remove
}

async function start() {
    if ("WebSocket" in window) {
        var protocol = location.protocol === "https:" ? "wss:" : "ws:";
        ws = new WebSocket(protocol + '//rasp.local:8090/stream/webrtc');
        ws.onopen = async function () {
            iceCandidates = [];
            remoteDesc = false;
            audio_video_stream = await navigator.mediaDevices.getUserMedia({video: false, audio: true});
            createPeerConnection();
            audio_video_stream.getTracks().forEach(track => pc.addTrack(track, audio_video_stream));
            var request = {
                what: "call",
                options: {
                    force_hw_vcodec: false,
                    vformat: "30",
                    trickle_ice: true
                }
            };
            ws.send(JSON.stringify(request));
            console.log("call(), request=" + JSON.stringify(request));
        };

        ws.onmessage = function (evt) {
            var msg = JSON.parse(evt.data);
            if (msg.what !== 'undefined') {
                var what = msg.what;
                var data = msg.data;
            }
            console.log("message =" + what);

            switch (what) {
                case "offer":
                    pc.setRemoteDescription(new RTCSessionDescription(JSON.parse(data)),
                        function onRemoteSdpSuccess() {
                            remoteDesc = true;
                            addIceCandidates();
                            console.log('onRemoteSdpSucces()');
                            pc.createAnswer(function (sessionDescription) {
                                pc.setLocalDescription(sessionDescription);
                                    var request = {
                                        what: "answer",
                                        data: JSON.stringify(sessionDescription)
                                    };
                                    ws.send(JSON.stringify(request));
                                    console.log(request);

                                }, function (error) {
                                    alert("Failed to createAnswer: " + error);

                                }, mediaConstraints);
                            },
                            function onRemoteSdpError(event) {
                                alert('Failed to set remote description (unsupported codec on this browser?): ' + event);
                                stop();
                            }
                    );
                    break;

                case "iceCandidate": // when trickle is enabled
                    if (!msg.data) {
                        console.log("Ice Gathering Complete");
                        break;
                    }
                    var elt = JSON.parse(msg.data);
                    let candidate = new RTCIceCandidate({sdpMLineIndex: elt.sdpMLineIndex, candidate: elt.candidate});
                    iceCandidates.push(candidate);
                    if (remoteDesc)
                        addIceCandidates();
                    document.documentElement.style.cursor = 'default';
                    break;
            }
        };

        ws.onclose = function (evt) {
            if (pc) {
                pc.close();
                pc = null;
            }
            document.documentElement.style.cursor = 'default';
        };

        ws.onerror = function (evt) {
            alert("An error has occurred!");
            ws.close();
        };

    }
    else {
        alert("Sorry, this browser does not support WebSockets.");
    }
}

function mute_other() {
    remoteVideo.muted = !remoteVideo.muted;
    if (remoteVideo.muted){
        document.getElementById("mute_other").style.backgroundColor = 'red';
    }
    else{
        document.getElementById("mute_other").style.backgroundColor = '#228b22';
    }
}

function mute_me() {
    audio_video_stream.getAudioTracks()[0].enabled = !audio_video_stream.getAudioTracks()[0].enabled;
    if (audio_video_stream.getAudioTracks()[0].enabled){
        document.getElementById('mute_me').style.backgroundColor = '#228b22';
    }
    else{
        document.getElementById("mute_me").style.backgroundColor = 'red';
    }
}

function rec_video() {
    let buf = [0, 0, 1, 0, 0, 0];
    set_disp(buf);

    recordedBlobs = [];
    var options = {mimeType: 'video/webm;codecs=vp9,opus'};
    if (!MediaRecorder.isTypeSupported(options.mimeType)) {
        console.log(options.mimeType + ' is not Supported');
        //options = {mimeType: 'video/webm;codecs=vp8'};
        options = {mimeType: 'video/webm;codecs=vp8,opus'};
        if (!MediaRecorder.isTypeSupported(options.mimeType)) {
            console.log(options.mimeType + ' is not Supported');
            options = {mimeType: 'video/webm;codecs=h264'};
            if (!MediaRecorder.isTypeSupported(options.mimeType)) {
                console.log(options.mimeType + ' is not Supported');
                options = {mimeType: 'video/webm'};
                if (!MediaRecorder.isTypeSupported(options.mimeType)) {
                    console.log(options.mimeType + ' is not Supported');
                    options = {mimeType: ''};
                }
            }
        }
    }

    try {
        recorder = new MediaRecorder(aa_streams[0], options);
    }
    catch (e) {
        console.error('Exception while creating MediaRecorder: ' + e);
        alert('Exception while creating MediaRecorder: ' + e + '. mimeType: ' + options.mimeType);
        return;
    }
    console.log('Created MediaRecorder', recorder, 'with options', options);
    recorder.ondataavailable = handleDataAvailable;
    recorder.onwarning = function (e) {
        console.log('Warning: ' + e);
    };
    recorder.start();
    console.log('MediaRecorder started', recorder);
 }

function stop_rec() {
    let buf = [0, 0, 0, 0, 1, 1];
    set_disp(buf);
    if (recorder) {
        recorder.stop();
        console.log("recording stopped");
        document.getElementById('record').innerHTML = 'Video';
        recorder = null;
    }
}

function handleDataAvailable(event) {
    //console.log(event);
    if (event.data && event.data.size > 0) {
        recordedBlobs.push(event.data);
    }
}

function play_video() {
    console.log('Play video');
    let buf = [0, 0, 0, 0, 0, 1];
    set_disp(buf);
    remoteVideo.style.display = "none";
    remoteVideo.pause();
    remoteVideo.muted = true;
    document.getElementById('play-video').style.display = "inline";

    var superBuffer = new Blob(recordedBlobs, {type: 'video/webm'});
    var recordedVideoElement = document.getElementById('play-video');
    recordedVideoElement.src = URL.createObjectURL(superBuffer);
}

function dn_photo(){
    var canvas = document.querySelector('canvas');
    var url = canvas.toDataURL('image/jpeg', 1.0);
    var a = document.createElement('a');
    a.style.display = 'none';
    a.href = url;
    a.download = get_time() + ".jpg";
    document.body.appendChild(a);
    a.click();
    setTimeout(function () {
    document.body.removeChild(a);
        window.URL.revokeObjectURL(url);
    }, 100);
}

function take_photo() {
    let buf = [0, 0, 0, 1, 0, 1];
    set_disp(buf);

    remoteVideo.pause();
    var canvas = document.querySelector('canvas');
    canvas.width = remoteVideo.videoWidth;
    canvas.height = remoteVideo.videoHeight;
    canvas.getContext('2d').drawImage(remoteVideo, 0, 0, canvas.width, canvas.height);
}

function set_disp(buf){
    let a= 0;
    let str;

    disp_buf.forEach(element => {
            str = 'none';
            if(buf[a] == 1) str = 'inline';
            document.getElementById(element).style.display = str;
            a ++;
        }
    );
}

function _back() {
    let buf = [1, 1, 0, 0, 0, 0];
    set_disp(buf);
    document.getElementById('play-video').style.display = "none";
    remoteVideo.style.display = "inline";
    remoteVideo.play();
    remoteVideo.muted = false;
}

function get_time() {
    var now = new Date();
    var mt = now.getMonth();
    mt += 1;
    now = now.getFullYear() + '-' + mt + '-' + now.getDate() + '_'
         + now.getHours() + '-' + now.getMinutes() + '-' + now.getSeconds();
    console.log(now);
    return now;
}



intercom.css css

@charset "UTF-8";

.t_font {
        font-size: 32px;
        font-weight: bold;
        font-style: italic;
        text-align: center;
        color: #0ff;
}

.b_frame {
        width: 670px;
        background: #363636;
        border-radius: 50px;
        border-style: ridge;
        border-width: 5px 15px;
        border-color: sienna;
        margin: 0 auto
}

.p_frame {
        width: 644px;
        height: 480px;
        background: #363636;
        border-radius: 10px;
        border-style: ridge;
        border-width: 5px;
        border-color: sienna;
        margin:  10px auto;
        text-align: center;
}

button {
        display: inline;
        margin: 6px 20px;
        line-height: 15px;
	width: 80px;
        font-size: 15px;
        font-weight: bold;
        font-style: italic;
        cursor: pointer;
        color: #fff;
        background: #228b22;
        border-radius: 20px;
	text-align: center;
        padding-left: 4px;
}

.input-group>label {
        display: inline-block;
        font-size: 16px;
        font-weight: bold;
        font-style: italic;
        padding-left: 15px;
        min-width: 25%;
        color: #0ff;
        margin-left: 80px;
}

._menu {
        display: block;
        flex-wrap: nowrap;
        min-width: 450px;
        background: #363636;
        border-radius: 4px;
        margin: 15px auto 30px;
}



ソースー＞　”intercom.zip"　

注）：intercom.jsファイル８１行　ws = new WebSocket(protocol + '//rasp.local:8090/stream/webrtc’);
の　”rasp.local”ご自身の環境に合わせたアドレス（IPアドレスなど）を使用して下さい。

次回は

やっと出来たと思ったら、なんとスマホでこのコードが動かない事が分かりました。次回は何で動かないのかその原因を探って行きます。
